Ambulance Supply & Funding

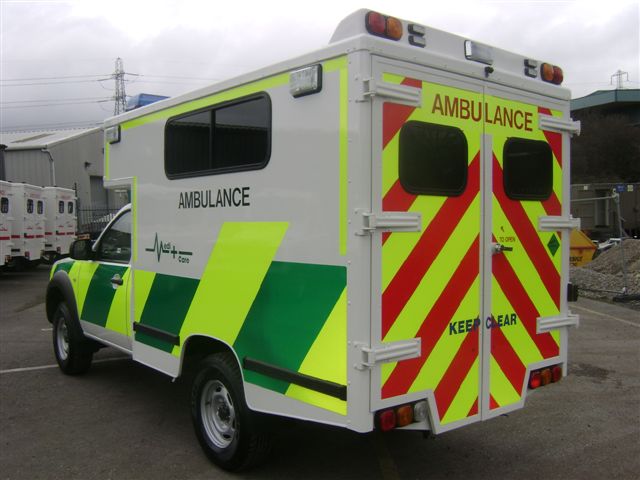

Ford Ranger Event / Rapid Response Vehicle

from @  182.99 + VAT per week equivalent (the vehicle will then belong to you at the end of the termed contract)

We have worked very closely with a major specialist vehicle converter to design a more affordable option based on the Ford Ranger Pick-Up.

We have based the Conversion on the ever popular Nissan Patrol Challenger / Cobra Specifications. The benefit to your business is a near 15,000 saving on cost price which reflects into much lower monthly payments and capital cost.


DETAILED SPECIFICATIONS
(PDF file Can be downloaded here)........DOWNLOAD

Chassis (FREE ISSUE)

  • Ford Ranger single cab chassis.

  • Long wheelbase.

  • Right hand drive.

Ambulance Body

  • Body of modular construction with insulated roof and sides mounted on heavy duty treated steel subframe.

  • Luton type over cab of the same construction as the body housing stowage locker.

  • Full bulkhead with sliding communication window.

  • Lockered spare wheel stowage.

  • Anti slip washable floor overlay.

  • Saloon has wipe clean interior and plain exterior.

  • Double lockable fold back rear doors each hung on 3 heavy duty outrigger hinges.

  • Shadowlite sliding window each side.

  • Fixed shadowlite windows in rear doors.

  • Intake/extract ventilator in roof.

Interior

Right hand side

  • Ferno Pioneer trolley stretcher with anti roll  mattress, drop down side arms, patient restraints and side mount locking device.

  • Overhead padded locker with clear sliding front.

  • Grab rail over trolley

  • IV hook and rail over trolley.

  • BS oxygen wall point at head of trolley.

Left hand side

  • Spare wheel locker on bulkhead with exterior access

  • Swivel attendants seat with one armrest, lap and  diagonal belt, 2 D size oxygen cylinder, brackets and 1 F size oxygen cylinder bracket (or CD and HX).

  • Full height equipment locker with stowage for grab  bag at rear (please see layout drawing for details).

  • Stowage only for defibrillator (details of defibrillator would need to be supplied).

  • BS oxygen wall point by seat.

  •  1L AFFF fire extinguisher.

Bulkhead

  • Over cab stowage locker.

  • Paper towel holder.

  • LSU docking bracket only.

Rear

  • Stowage for scoop stretcher on rear door.

  • Ascending handle.

Electrical

  • Fluorescent interior lighting with dimming capability

  • 2 ancillary plug points.

  • Strobe lightbar on roof with centre sign.

  • Rear GRP pod housing flood loading light, rear reds and stop/tail/indicator lights.

  • Electronic siren.

  • Scene light each side forward and rear.

  • Buzzer communication to cab.

  • Rear marker lights.

  • Statutory lighting.

Exterior

  • White with markings to requirements.

  • Livery to customers requirements (e.g. St John/Red Cross)

Delivery          Approximately 6 working weeks from receipt of order and base vehicle supply

Finance available    H.P / Leasing / Contract Hire
Lease from @ £1
82.99 + VAT per week equivalent

Click here to make an enquiry

Choice of Alternative Vehicles

We can provide this conversion on Mitsubishi L200, Toyota Hilux, Nissan Navara

___________________________________________




Ranger Layout Diagram
















To download this picture..... click here
